Kimball Data Model

​

1. What is the Kimball Data Model Approach?

The Kimball Data Model Approach, developed by Ralph Kimball, is a methodology for designing data warehouses and business intelligence (BI) systems. It focuses on creating dimensional models that are optimized for query performance and ease of use. The approach emphasizes business user needs, simplicity, and iterative development.

​

2. Key Concepts in the Kimball Approach

• Dimensional Modeling: A design technique that organizes data into fact and dimension tables.
• Fact Table: Contains quantitative data (measures) and foreign keys to dimension tables.
• Dimension Table: Contains descriptive attributes (context) for analyzing measures.
• Star Schema: A common dimensional model structure with a central fact table connected to dimension tables.
• Grain: The level of detail or granularity of the data in the fact table.
• Surrogate Key: A unique identifier for each row in a dimension table, used to handle changes over time.
• Conformed Dimensions: Dimensions that are consistent across multiple fact tables, enabling cross-functional analysis.

​

3. Components of the Kimball Data Model

1. Fact Tables:

   • Store quantitative data (measures) such as sales, revenue, or quantities.
   • Example: A Sales fact table with measures like TotalSales and QuantitySold.

2. Dimension Tables:

   • Store descriptive attributes (context) for analyzing measures.
   • Example: A Customer dimension table with attributes like CustomerID, Name, and City.

3. Star Schema:

   • A central fact table connected to multiple dimension tables.
   • Example: A Sales fact table connected to Customer, Product, and Time dimension tables.

4. Surrogate Keys:

   • Unique identifiers for dimension table rows, used to handle changes over time.
   • Example: A CustomerID surrogate key in the Customer dimension table.

5. Conformed Dimensions:

   • Dimensions that are consistent across multiple fact tables.
   • Example: A Time dimension table used by both Sales and Inventory fact tables.

​

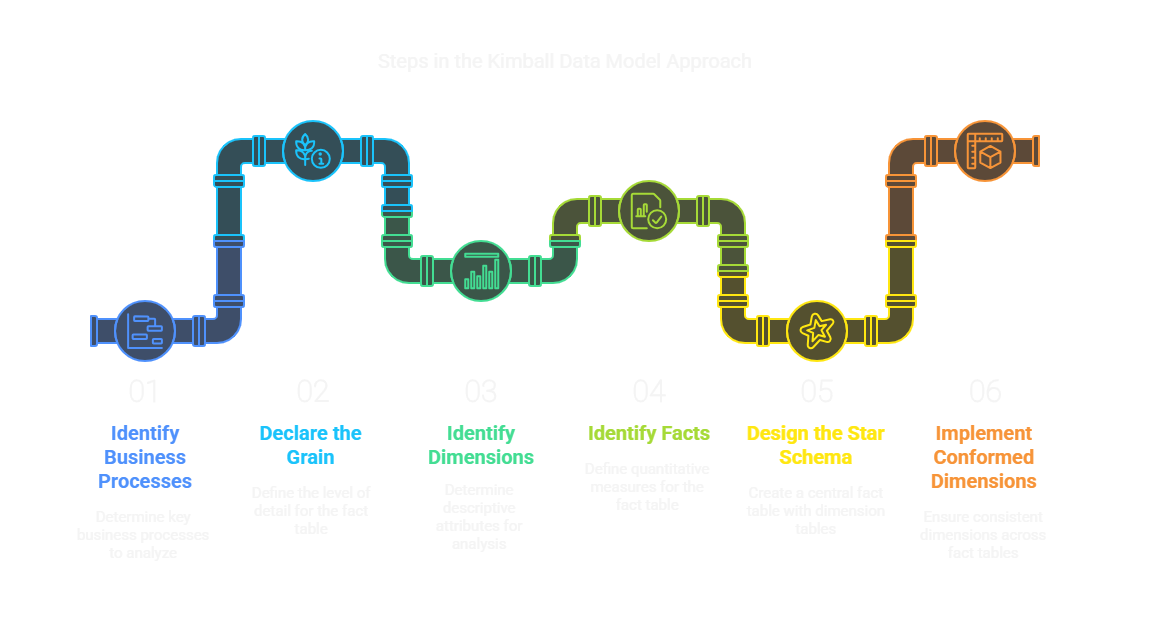

4. Steps in the Kimball Data Model Approach

1. Identify Business Processes: Determine the key business processes that need to be analyzed (e.g., sales, inventory).
2. Declare the Grain: Define the level of detail (grain) for the fact table (e.g., daily sales by product).
3. Identify Dimensions: Determine the descriptive attributes (dimensions) for analyzing the measures (e.g., customer, product, time).
4. Identify Facts: Define the quantitative measures (facts) to be stored in the fact table (e.g., total sales, quantity sold).
5. Design the Star Schema: Create a central fact table connected to dimension tables.
6. Implement Conformed Dimensions: Ensure dimensions are consistent across multiple fact tables.
7. Iterate and Refine: Continuously improve the model based on feedback and changing business needs.

​

5. Benefits of the Kimball Approach

• Simplicity: Easy to understand and use, especially for business users.
• Performance: Optimized for query performance with denormalized structures.
• Flexibility: Supports iterative development and incremental enhancements.
• Business Focus: Aligns closely with business user needs and requirements.
• Consistency: Conformed dimensions ensure consistent analysis across the organization.

​

6. Challenges in the Kimball Approach

• Data Redundancy: Denormalized structures can lead to data redundancy.
• Complexity for Large Systems: Can become complex for large systems with many fact and dimension tables.
• Data Integration: Integrating data from multiple sources can be challenging.
• Changing Requirements: Adapting the model to evolving business needs can be difficult.

​

7. Kimball vs. Inmon Approach

​

8. Tools for Kimball Data Modeling

• ER/Studio: A tool for creating and managing dimensional models.
• Microsoft Visio: A diagramming tool that supports dimensional modeling.
• Lucidchart: A cloud-based tool for creating data models and diagrams.
• SQL Server Analysis Services (SSAS): Supports dimensional modeling for data warehouses.
• Tableau: A BI tool that works well with dimensional models.

​

9. Best Practices for the Kimball Approach

• Focus on Business Needs: Align the model closely with business user requirements.
• Start Small: Begin with a single business process and expand iteratively.
• Use Conformed Dimensions: Ensure consistency across multiple fact tables.
• Optimize for Performance: Use denormalized structures and indexes to improve query performance.
• Document the Model: Provide detailed documentation for future reference.
• Iterate and Refine: Continuously improve the model based on feedback and changing requirements.

​

10. Key Takeaways

• Kimball Data Model Approach: A methodology for designing data warehouses using dimensional modeling.
• Key Concepts: Dimensional modeling, fact tables, dimension tables, star schema, grain, surrogate keys, conformed dimensions.
• Components: Fact tables, dimension tables, star schema, surrogate keys, conformed dimensions.
• Steps: Identify business processes, declare the grain, identify dimensions, identify facts, design the star schema, implement conformed dimensions, iterate and refine.
• Benefits: Simplicity, performance, flexibility, business focus, consistency.
• Challenges: Data redundancy, complexity for large systems, data integration, changing requirements.
• Kimball vs. Inmon: Kimball focuses on business user needs and dimensional modeling; Inmon focuses on data integration and normalized modeling.
• Tools: ER/Studio, Microsoft Visio, Lucidchart, SSAS, Tableau.
• Best Practices: Focus on business needs, start small, use conformed dimensions, optimize for performance, document the model, iterate and refine.
